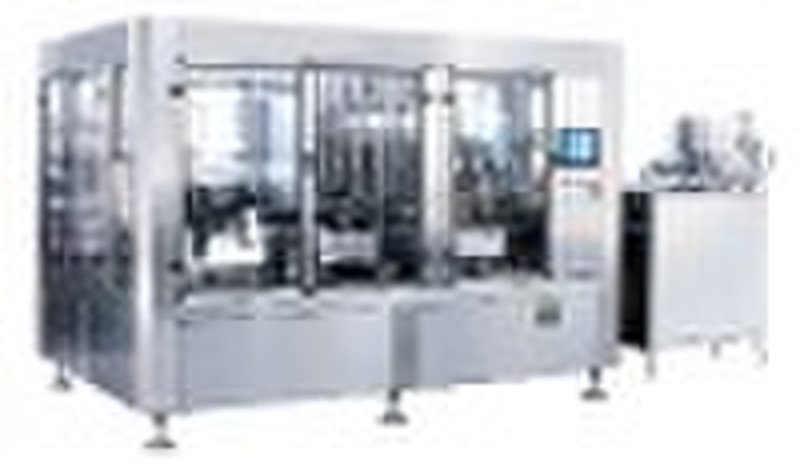

Juice Filling machine

The equipment is used in production of noon-soda drink of fruit juice,fruit wine,minerals and pure water packed in polyester bottles.Washing,filling and capping are integrated in one machine.The whole machine is controlled by PLC with touch-screen as the human-machine interface.The amout of the drinks in the storage tank can be controlled automatically.The filling and capping will be stopped automatically when bottles are cramped wrongly or when caps are not available,the machine can automatically.The frequency changing technology is used to adjust the operation speed steplessly.The production can be displayed digitally and can be adjusted conveniently. ModelRCGF16126RCGF18186RCGF24248RCGF323212RCGF404015RCGF505018RCGF606020Head of washing, filling, sealing16-12-618-18-624-24-832-32-1240-40-1550-50-1860-60-20Production capacity (bottle/hour)4000-50006000-80008000-1000010000-1200012000-1400015000-1600018000-20000Suitable bottle diameter(mm)φ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlφ=50-90 H=150-310 330-1500mlSpraying pressure0.250.250.250.250.250.250.25Motor power3.13kw3.84kw4.1kw5.6kw7.5kw9kw11kwPower of outer vacuum pump0.3-0.70.3-0.70.3-0.70.3-0.70.3-0.70.3-0.70.3-0.7Overall dimension (mm)2100×1650×23002400×1900×23002800×2100×23004200×2300×23005000×2800×24005900×3100×24006500×3500×2400Weight(Kg)25003000400050007500900011000 Juice filling machine
