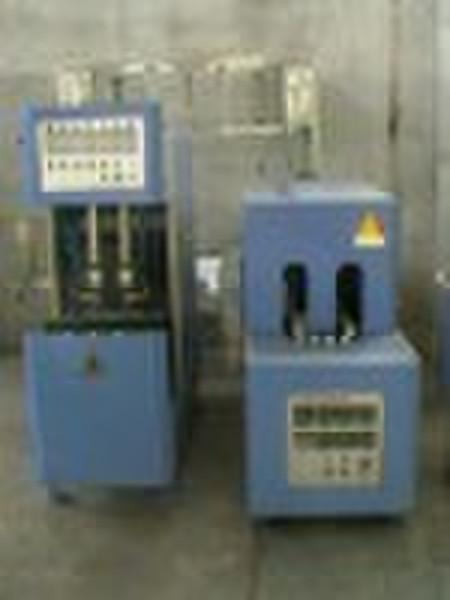

0.1L-2L Semi-automatic Bottle Blowing Machine

Main machine (blow molding part + oven) Model type KM-1500 Product Spec Max. product volume(L/cav) 2 Max. preform neck size(mm) 50 Max. product diameter(mm) 90 Max. product height (mm) 360 Cavities 2 Blow molding part Die force (KN) 120 Die stroke (mm) 120-210 Max. mould size(mm) 390*345 Mould thickness 120-160/220-270 Mould spacing(mm) 120-170 Max. pulling stroke(mm) 340 Operation pressure(Mpa) 0.8-1.0 Operation air pressure consumption (1tr/min) 300 Blow pressure(Mpa) 1.2-2.8 Blow air pressure consumption (1tr/min) 350 Output(pcs/h) 1500-1800 Machine size(LxWxH)(m) 1.46*0.58*1.8 Package size (LxWxH) 1.66*0.77*2.12 Machine weight(KG) 650 Oven Temperature grade(rate) 6 Heating time(S) 90-200 Voltage(V) 220 Frequency(HZ) 50 Total power(KW) 6.3-10.3 Actual power consumption(KW) ≤5 Oven Size (LxWxH) 1.35*0.55*1.15 Package size (LxWxH) 1.55*0.75*1.35 Oven weight (KG) 300 •Auxiliary device Auxiliary device Required Spec KM-1500 High pressure air compressor Operation air pressure 3.0 Mpa Air displacement 0.75 m3/min Power 9 Kw R.P.M 800 Weight 460 Kg Dimension 1.86m*0.9m*1.4m Air filter (oil-water separator ) Filter precision ≤5ppm Weight 28Kg Dimension 0.24m*0.26m*0.73m •Other configuration ways Other configuration ways about the type KM-1500Blow molding part (set)Oven (set)Use conditionRemark11Standard configurationAny type12Thick preform which heating time is long21Thin preform which heating time is very short (normally the volume under 400ml)Increase the air compressor displacement up to 1.2m3/min•Electrical parts Electrical parts: ItemMain control computerTemperature gaugeTransducerInfrared ray heating lightBrandCompositive minitype computer MITSUBISHIMITSUBISHIKBSDescriptionConveniency Quickly No malfunction Easy operation Steady quality Heating and rotating just one step High power Long using life time, Strong penetrate semi-automatic pet bottle blow machine KM-1500
